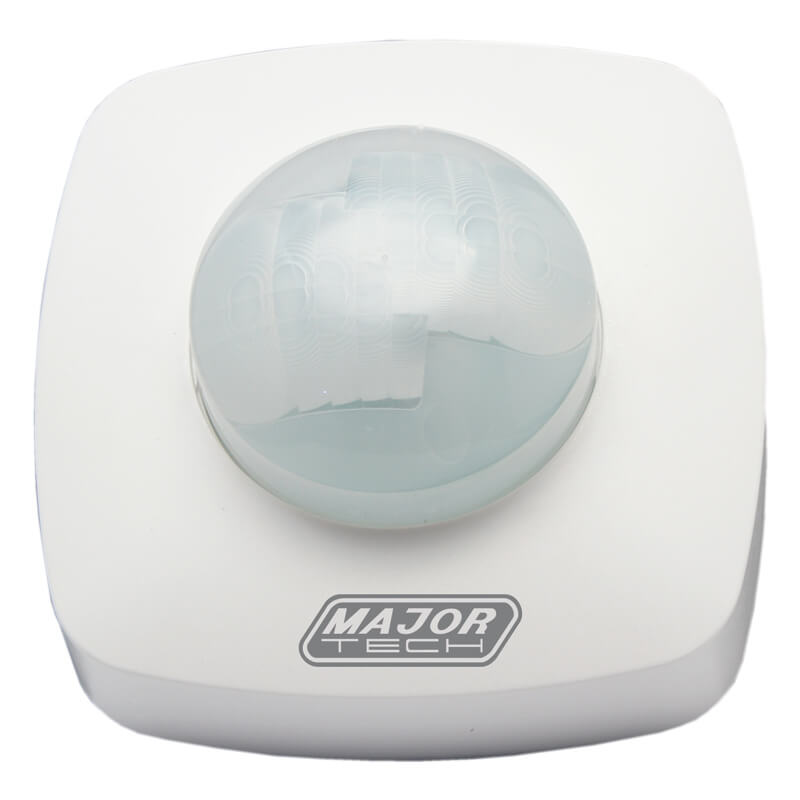

Veti 360˚ PIR Imotion Sensor 20m
Sold out
Collect in store at Potchefstroom — select pickup at checkout.
The PIR45 is specially designed for long passages with a detection range of 20m in length and a width detection range of 4m as it automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and an installation height of up to 10m, with adjustable settings for Lux and Time, easily integrated into new or existing setups.
Key points
- Brand: Veti
- Category: Sensors & Automation
- Model / SKU: PIR45
Specifications
- Function: Range
- Detection Area: 360°
- Detection Motion Speed: 0.6 to 1.5m/s
- Installation Height: 4m – 10m
- Voltage: 220 to 240V AC
- Power Frequency: 50/60Hz
- Rated Load Incandescent LED / CFL: 2000W 1000W
- Time Delay: 10 sec (±3 sec) to 30 min (±2 min)
- Mounting: Ceiling Mount
- Working Temperature: -20°C to 40°C
- IP Rating: IP20 (Indoor Installation)
- Standards: IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
Ideal application
Home, renovation and trade projects where the product specifications match the job.
Buying notes
Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
