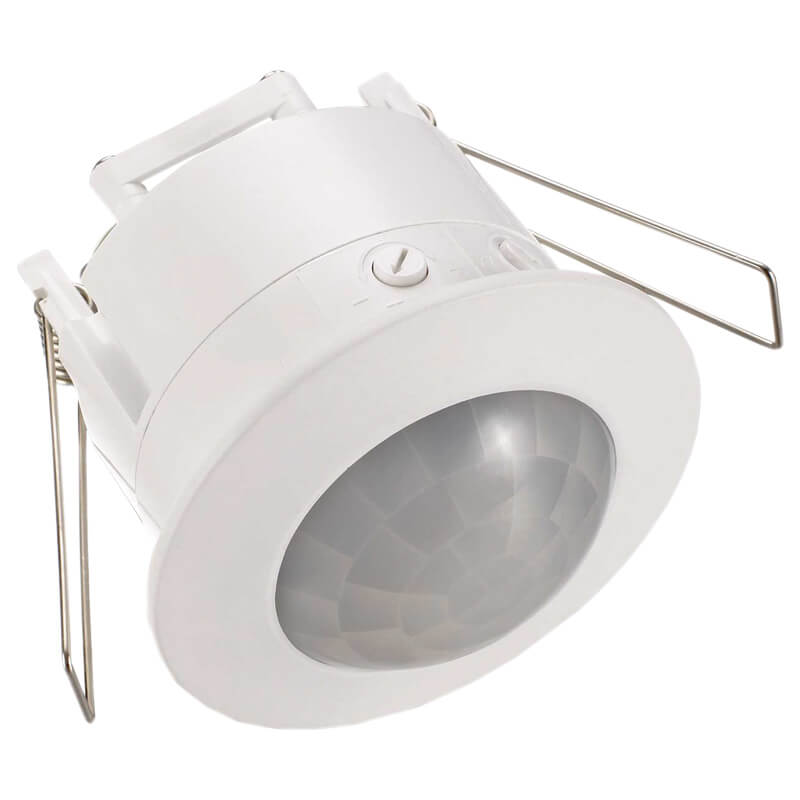

Veti 360˚ PIR Ceiling Motion Sensor

The PIR32 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and adjustable settings for time and Lux level, easily integrated into new or existing installations.

Key points

• Brand: Veti
• Category: Ceiling Lights
• Model / SKU: PIR32

Specifications

• Function: Range
• Detection Area: 360°
• Detection Distance: 6m Max
• Detection Motion Speed: 0.6 to 1.5m/s
• Installation Height: 2.2m - 4m
• Voltage: 220 to 240V AC
• Power Frequency: 50/60Hz
• Rated Load Incandescent LED / CFL: 1200W 600W
• Time Delay: 10 sec (±3 sec) to 15 min (±2 min)
• Hole Cut Out Size: Ø64mm
• Mounting: Ceiling Mount
• Working Temperature: -20°C to 40°C

Ideal application

Indoor ceiling mounting where the fitting and lamp type match.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
