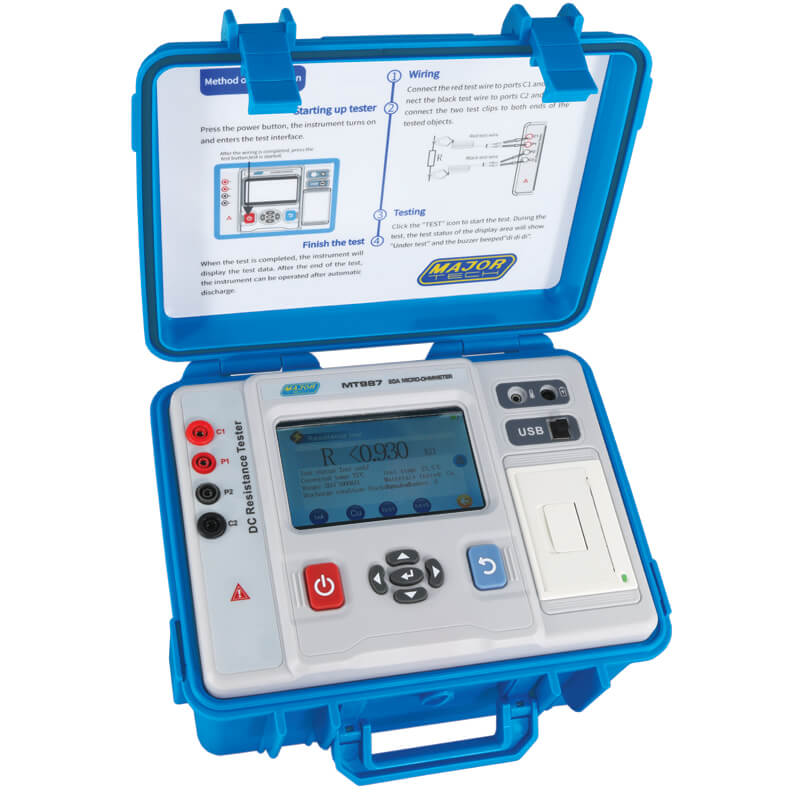

Major Tech 20A Micro-Ohmmeter

The MT987 is a 20A Micro-Ohmmeter, also known as transformer DC resistance tester, DC resistance quick tester, and earth continuity tester. It uses microprocessor technology for testing safely, precisely and reliably.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT987

Specifications

• Function: Range
• Measuring Current 20A: 10.0uΩ-1000.00uΩ 1.000mΩ-10.000mΩ
• Measuring Current 10A: 10.00mΩ-100.00mΩ
• Measuring Current 5A: 100.0mΩ-1000.0mΩ
• Measuring Current 1A: 1.000Ω-10.000Ω
• Measuring Current 0.1A: 10.00Ω-100.00Ω
• Measuring Current 10mA: 100.0Ω-1000.0Ω
• Measuring Current 1mA: 1.000KΩ-10.000KΩ 10.00KΩ-100.00KΩ 100.0KΩ-1000.0KΩ
• Temperature (Internal): -10.0°C to 60.0°C
• Temperature (Probe): -10.0°C to 60.0°C
• Test Current: 20A, 10A, 5A, 1A, 0.1A, 10mA, 1mA
• Short Circuit Current: 20A

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
