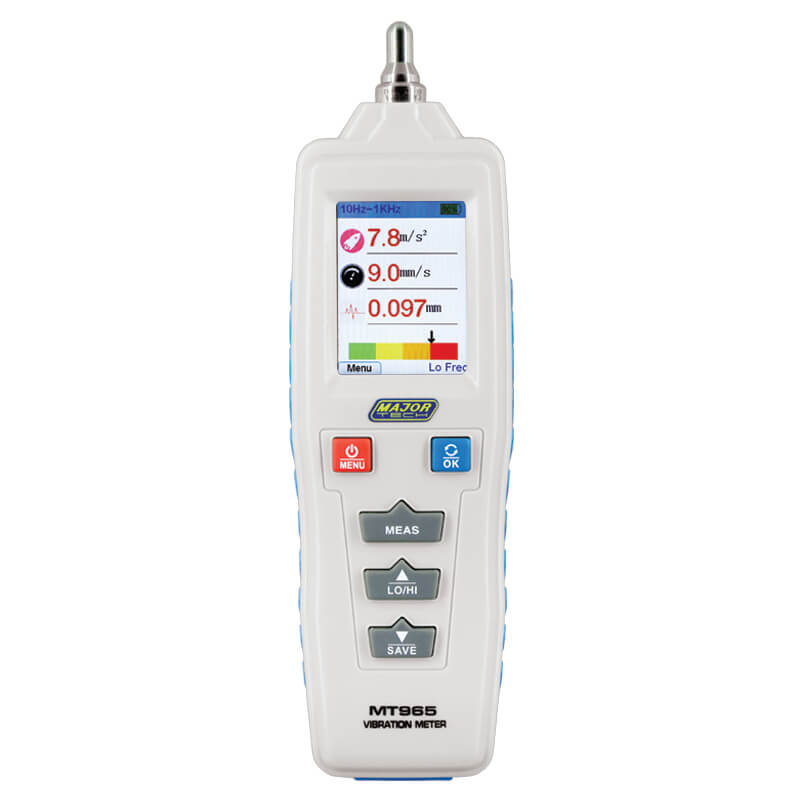

Major Tech Digital Vibration Meter

The MT965 probe type Vibration Meter and is a product based on piezoelectric effect of artificially polarized ceramics. The meter has a colour display with all measurements indicated simultaneously, plus a colour bar graph for quick indication of the vibration status.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT965

Specifications

• Function: Range
• Acceleration Measurement Range: 0.1 – 199.9m/s²
• Velocity Measurement Range: 0.1 – 199.9mm/s²
• Displacement Measurement Range: 0.001 – 1.999mm
• High Frequency Range of Acceleration Measurement: 1kHz – 4kHz
• Low Frequency Range of Acceleration Measurement: 10Hz – 1kHz
• Low Frequency Range of Velocity Measurement: 10 Hz – 1kHz
• Low Frequency Range of Displacement Measurement: 10Hz – 1kHz
• Maximum Groups of Data Storage: 500 pieces (5 groups – 100 pieces per group)
• Velocity Acquisition: Piezoelectric ceramic accelerometer (Shear type)
• Power Source: 2 x 1.5V AAA battery
• Size: 180 x 54 x 30mm

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
