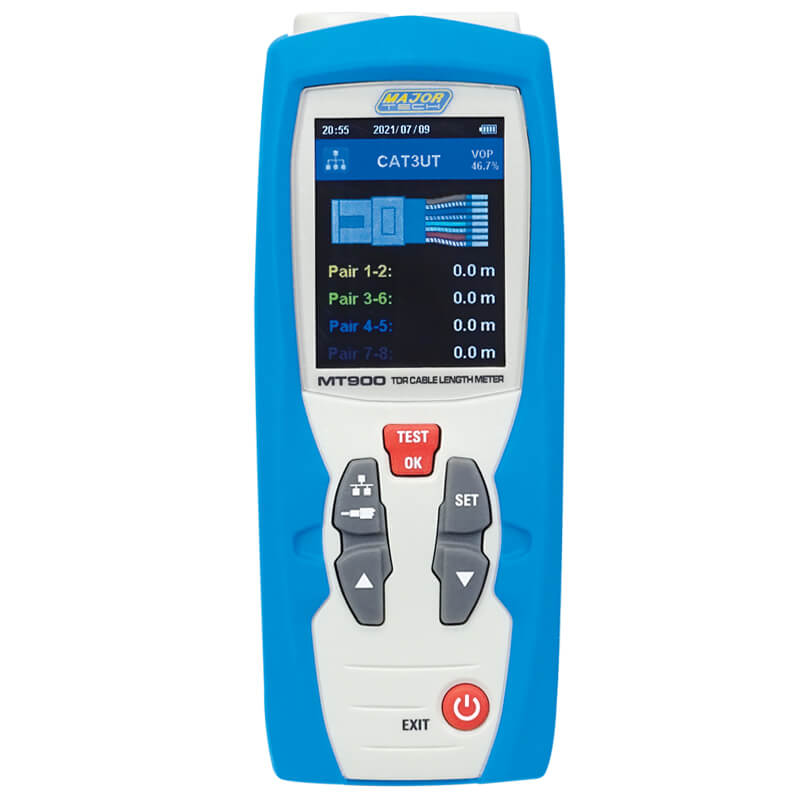

Major Tech TDR Cable Length Meter

The MT900 is a precision cable length meter that uses TDR (Time domain reflectometer) technology to measure cable length. The meter can be used for any cable consisting of at least two insulated metallic elements, one of which may be the sheath or shield of the cable.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT900

Specifications

• Function: Range
• Maximum Range @ V.O.P 99.9%: 3.0 km @ VOP≤ 99.9%
• Maximum Range @ V.O.P 80.0%: 2.4 km @ VOP ≤ 80.0%
• Maximum Range @ V.O.P 66.0%: 2.0 km @ VOP ≤ 66.0%
• Maximum Range @ V.O.P 50.0%: 1.5 km @ VOP ≤ 50.0%
• Range Selection: Automatic
• Digital Display: 2.4-inch TFT colour screen
• Overrange Indication: Yes
• Output Impedance: 25, 50, 75, 100, 125 or 150 ohms
• Impedance Selection: Automatic output impedance control
• Velocity Factor: Adjustable from 1.0% to 99.9%
• Cable Library: 20 standard cable types

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
