Major Tech

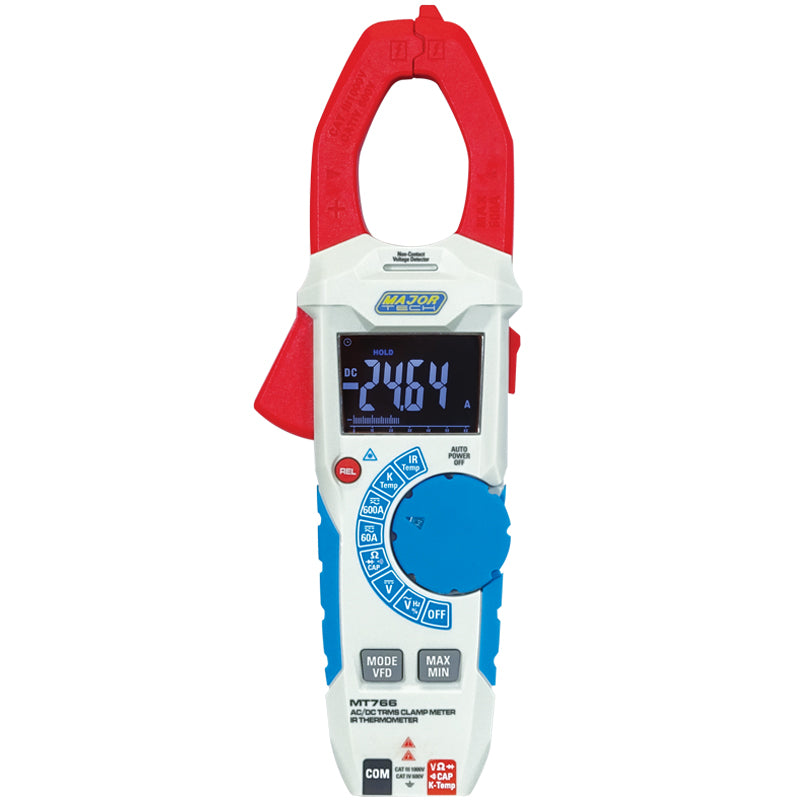

Major Tech 600A AC/DC TRMS Clamp Meter & IR Thermometer, CAT IV 600V

R 3,535.00

Sold out

Click & Collect available

Collect in store at Potchefstroom — select pickup at checkout.

The MT766 is a CAT IV 600V True RMS 600A AC/DC digital clamp meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements.

Key points

Brand: Major Tech
Category: Test Instruments
Model / SKU: MT766

Specifications

Function: Range
DC Current: 0.01A – 600A
AC Current: 0.01A – 600A
DC Voltage: 1mV – 1000V
AC Voltage: 0.001V – 1000V
Resistance: 0.1Ω – 60MΩ
Frequency: 0.001Hz – 9.999kHz
Capacitance: 0.1nF – 99.99mF
Temperature K-Type: -20 to 1000°C
Duty Cycle: 20% to 80%
True RMS Measurements: ACV, ACA
AC Bandwidth: 50 – 1000Hz

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
