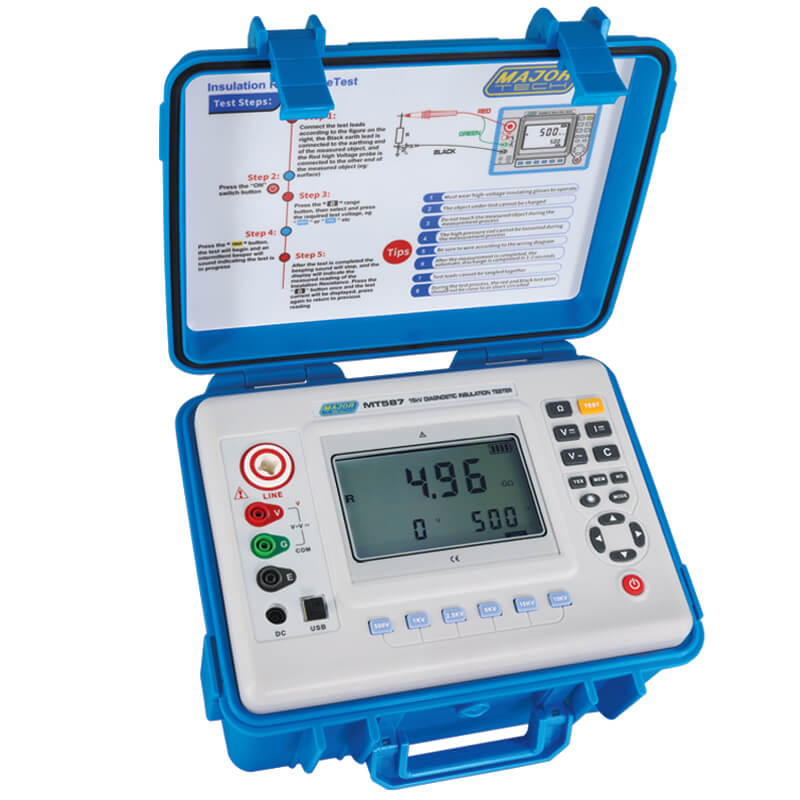

Major Tech 500V-15kV Diagnostic HV Insulation
SKU: MT587
Sold out
Collect at Potchefstroom — choose pickup at checkout.
Description
The MT587 is a 15kV Digital High Voltage Tester with measurements from 500V DC to 15kV DC, with increments of 50V on each range up to 10kV and thereafter in increments of 100V, and will automatically discharge the circuit after the test has been completed. Using the range button switches, 6 preset ranges of 500V, 1000V, 2500V, 5000V, 10kV and 15kV can be selected, with an insulation resistance up to 50TΩ.
Key points
- Brand: Major Tech
- Category: Test Instruments
- Model / SKU: MT587
Specifications
- Function: Range
- Insulation 500V: 0.2 MΩ~2000GΩ
- Insulation 1000V: 0.5MΩ~5000GΩ
- Insulation 2500V: 1MΩ~1000GΩ
- Insulation 5000V: 2MΩ~10TΩ
- Insulation 10KV: 5MΩ~35TΩ
- Insulation 15KV: 6MΩ~50TΩ
- DC voltage: 0.0V~1000V
- AC voltage: 0.0V~750V
- DC current: 1mA – 1000pA
- Capacitance: 10uf – 100nf
- Basic condition: 23°C ± 5°C, below 75%RH
Ideal application
Electrical testing and troubleshooting by a qualified person.
