Major Tech

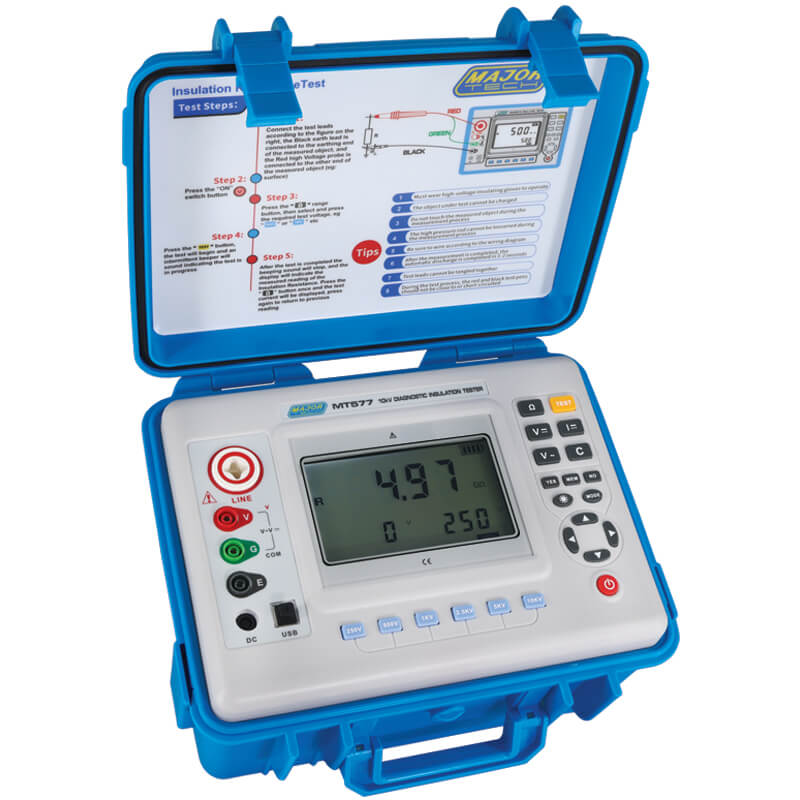

Major Tech 250V-10kV Diagnostic HV Insulation
R 28,450.00
SKU: MT577
Sold out
Click & Collect
Collect at Potchefstroom — choose pickup at checkout.
Description
The MT577 10kV Diagnostic Insulation Tester with increments of 50V on each range will automatically discharge the circuit after the test has been completed. Using the range button switches, 6 preset ranges of 250V, 500V, 1000V, 2500V, 5kV and 10kV can be selected, with an insulation resistance up to 35TΩ.
Key points
- Brand: Major Tech
- Category: Test Instruments
- Model / SKU: MT577
Specifications
- Function: Range
- Insulation 250V: 0.1MΩ~1000GΩ
- Insulation 500V: 0.2 MΩ~2000GΩ
- Insulation 1000V: 0.5MΩ~5000GΩ
- Insulation 2500V: 1MΩ~10TΩ
- Insulation 5000V: 2MΩ~10TΩ
- Insulation 10KV: 5MΩ~35TΩ
- DC voltage: 0.1V~1000V
- AC voltage: 0.1V~750V
- DC current: 0.01nA – 6mA
- Capacitance: 10nF – 50µF
- Basic condition: 23°C ± 5°C, below 75%RH
Ideal application
Electrical testing and troubleshooting by a qualified person.
Buying notes
Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
