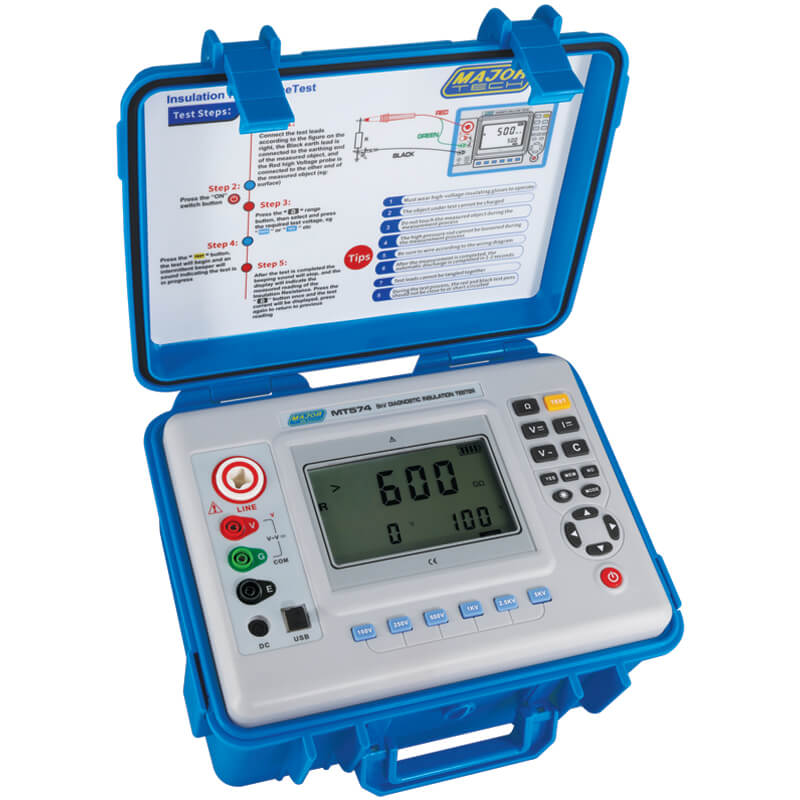

Major Tech 100V-5kV Diagnostic HV Insulation

The MT574 is a CAT IV 600V CAT III 1000V Digital High Voltage Tester with measurements from 100V DC to 5000V DC, with increments of 50V on each range, and will automatically discharge the circuit after the test has been completed. Using the range buttons switches, 6 preset ranges of 100V, 250V, 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 10TΩ.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT574

Specifications

• Function: Range
• Insulation 100V: 0.05 MΩ~500GΩ
• Insulation 250V: 0.1MΩ~1000GΩ
• Insulation 500V: 0.2MΩ~2000GΩ
• Insulation 1000V: 0.5MΩ~10TΩ
• Insulation 5KV: 2MΩ~10TΩ
• DC voltage: 0.0V~1000V
• AC voltage: 0.0V~750V
• DC current: 1mA – 1000pA
• Capacitance: 10uf – 100nf
• Basic condition: 23°C ± 5°C, below 75%RH
• Rated voltage: 100V, 250V, 500V, 1000V, 5kV

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
