Major Tech 500V/1000V/2.5KV/5KV Digital Insulation Tester, CAT IV 600V

R 19,675.00

Sold out

Click & Collect available

Collect in store at Potchefstroom — select pickup at checkout.

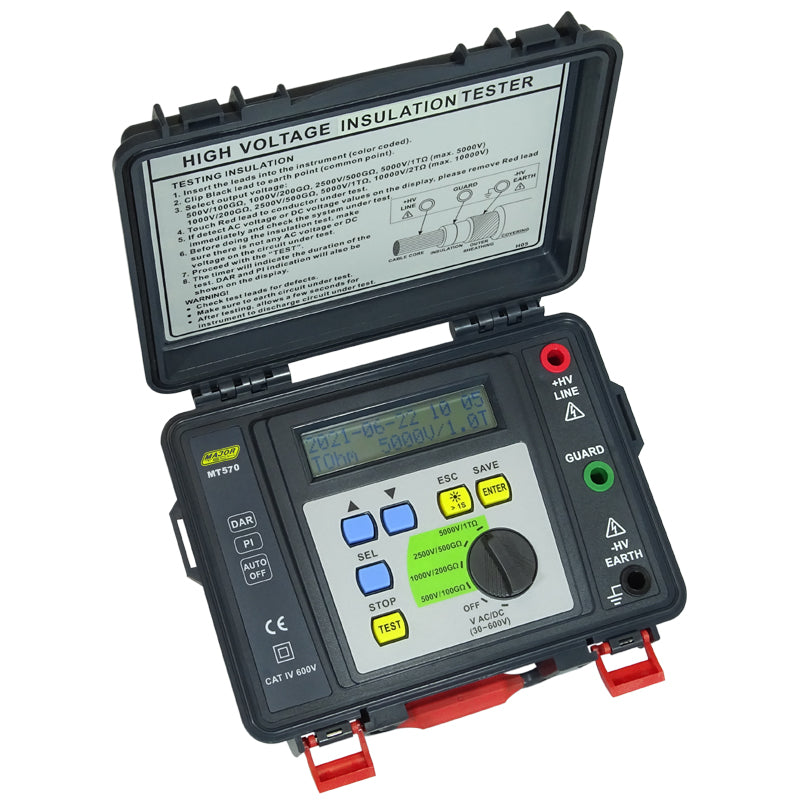

The MT570 is a 5kV High Voltage Insulation Tester with measurements from 500V DC to 5000V DC, and will automatically discharge the circuit after the test has been completed. Using the rotary selector switch, 4 preset ranges of 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 1TΩ.

Key points

Brand: Major Tech
Category: Test Instruments
Model / SKU: MT570

Specifications

Function: Range
DC voltage: 1V – 600V
AC voltage: 1V – 600V
Insulation resistance 500V: 500V-100G?
Insulation resistance 1000V: 1000V-200G?
Insulation resistance 2500V: 2500V-500G?
Insulation resistance 5000V: 5000V-1T?
Short circuit current: 5mA
Polarization index: Yes
Dielectric absorption ratio: Yes
Auto discharge: Yes
Data logging: Yes

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
