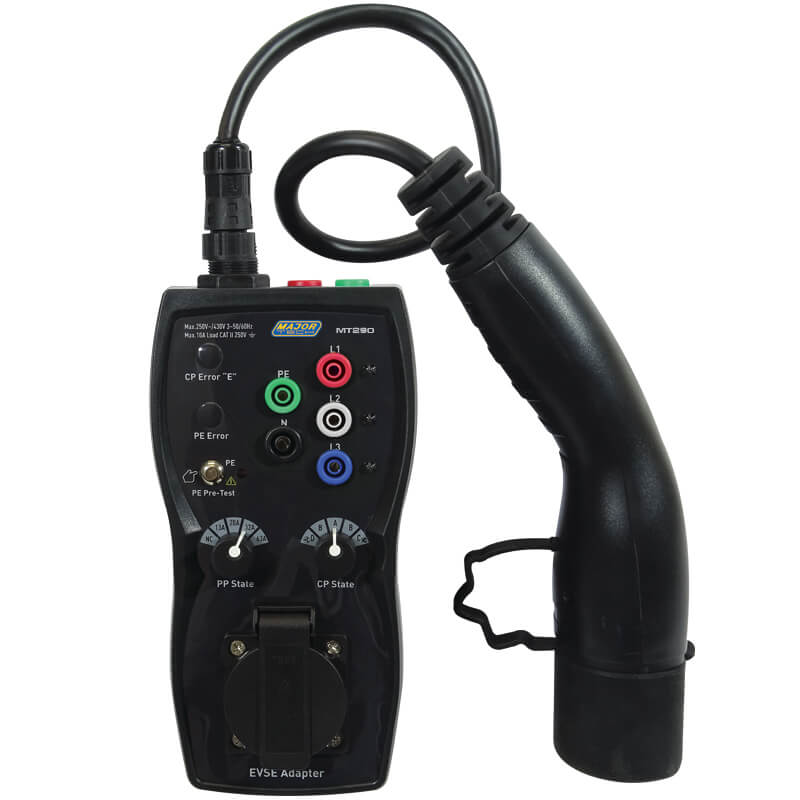

Major Tech EVSE Adaptor

The MT290 is an extender for interfacing Electric Vehicle Supply Equipment (EVSE) to test the socket of an installation tester for verification of electrical safety and function of all single and three phase EV charge points. This easy-to-use instrument, used in conjunction with the MT390 or similar meter offers an electrical contractor a universal tool designed to thoroughly test Mode 3 AC Electric Vehicle charging stations.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT290

Specifications

• Function: Range
• Input Max Single Phase System: 250V
• Input Max Three Phase System: 430V, 50/60Hz,
• Input Max: 10A 200.0mV – 600V
• EVC-200 Connector: AC charging mode 3. Suitable for Type 2 wall top contact or fixed cable with vehicle connection (type 2 7P operation pha
• EVC-100 Connector: AC charging mode 3. Suitable for Type 1 with vehicle connection (type 1 5P single-phase)
• PE Pre-Test: Yes open (Error condition or disconnection of plug) 13A Coding for maximum current of the EV cable
• PP Stimulation: 20A 32A EVSE is connected and can operate in any, 63A of these coding position.
• CP Stimulation: states A (EV disconnect) states B (EV connected) states C (EV charged without ventilation) states D (EV charged with ven
• CP Error “E”: On (CP short to PE via diode) / off
• PE Error: On (PE error) / off
• Size: 227 x 115 x 60mm

Ideal application

Electrical testing and troubleshooting by a qualified person.
