Major Tech
Major Tech 240V-500kV AC HV Non-Contact Voltage Detector
SKU: MT275
Sold out
Collect at Potchefstroom — choose pickup at checkout.
Description

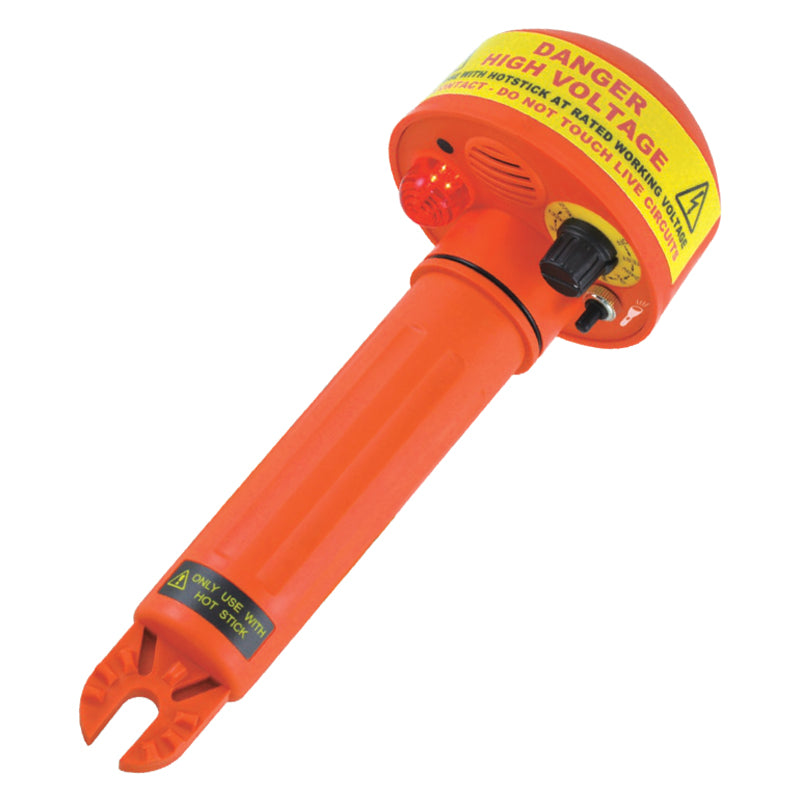

The MT275 is a non-contact high-voltage proximity detector designed for safe and reliable voltage detection from 380V AC to 500kV AC, with eight selectable ranges. It uses an internal sensor plate to detect the electric field around live conductors and features audible and visual alarms, plus a selftest function.Built with an IP65-rated, shock-resistant enclosure, the MT275 is suited to harsh environments and can be used with insulated link sticks or hot sticks for added safety.
Key points
- Brand: Major Tech
- Category: Test Instruments
- Model / SKU: MT275
Specifications
- Function: Range
- Non-Contact Voltage (NCV): Yes
- AC Voltage: 380V, 6KV, 10kV, 27.5kV, 35kV, 110kV, 220kV, 500kV
- Frequency: 40 – 70Hz
- Voltage Detector Visual: Hi bright red LED
- Voltage Detector Audible: High noise level buzzer
- Power On Indicator: Self-test selection
- Flash Light: Yes
- Enclosure: Moulded IP65
- Batteries: 3 x C
- Dimensions: 255 x Ø96 x Ø45mm
- Weight: 531g
Ideal application
Electrical testing and troubleshooting by a qualified person.
Buying notes
Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
