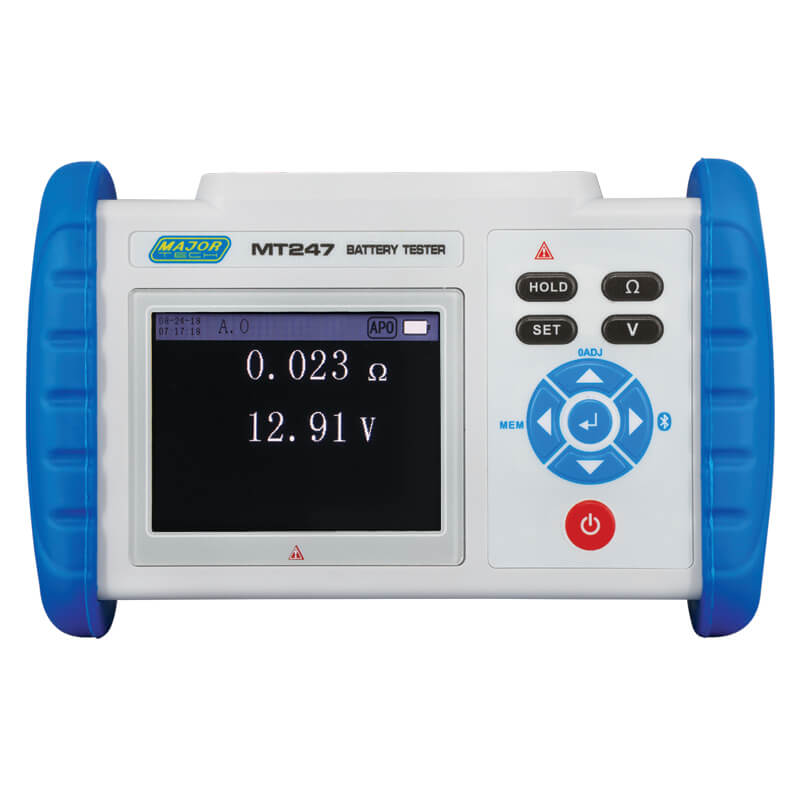

Major Tech Battery Resistance Tester

Description

The MT247 is a rechargeable battery internal resistance tester. Simultaneously measuring voltage and temperature of rechargeable batteries such as lead storage batteries, GEL batteries and lithium batteries to determine the health of the battery.

Key points

• Brand: Major Tech
• Category: Batteries & Power
• Model / SKU: MT247

Specifications

• Function: Range
• Resistance: 1µΩ – 3.100Ω
• DC Voltage: 0.001 – 71.00V
• Temperature: -10.0°C~60.0°C
• Temperature and humidity: 23°C ± 5°C below 75% RH.
• Power supply: 3.7V lithium battery
• Maximum input voltage: DC 70V (between + measurement terminal and – measurement terminal), no AC input
• Measuring Method: Internal resistance measurement: 1KHz (AC 4-terminal test method, open-circuit terminal voltage 3V max) Measuring curren
• Response time: 200ms
• Measure time: About 2 seconds
• LCD Size: 70.1mm x 52.6mm /3.5 inches (320×240 resolution 16-bit true color screen)
• Instrument size: 190mm x 121mm x 51mm

Ideal application

Home, renovation and trade projects where the product specifications match the job.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
