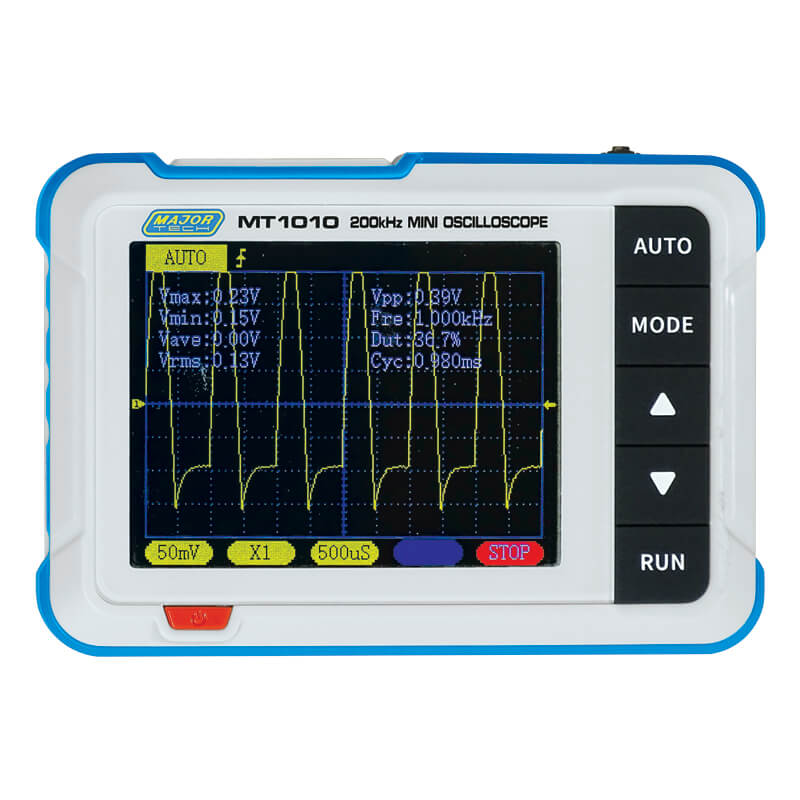

Major Tech Mini Oscilloscope 200KHz

The MT1010 is a highly practical and budget-friendly handheld oscilloscope designed for the maintenance and research education industries. This versatile device features a real-time sampling rate of 2.5MS/s, a bandwidth of 200kHz and comprehensive trigger functions (single, normal, and automatic).

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: MT1010

Specifications

• Function: Range
• Sampling Rate: 2.5MS/s
• Bandwidth: 200kHz
• Vertical Sensitivity: 10mV / Div-20V / Div (progress according to the 1-2-5 way)
• Time Base Range: 10μs / Div-50s / Div (progress according to the 1-2-5 way)
• Voltage Range: X1: ±40V (VPP: 80V) X10: ±400V (VPP: 800V) (Optional Probe)
• Trigger Methods: Auto, Normal, Single
• Coupling Method: AC/DC
• Lithium Battery Capacity: 1000mAh (Rechargeable)
• Sqaure wave Calibration: 1K Frequency
• Duty Cycle: 50%
• Dimensions: 99 x 68.3 x 19.5mm

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
