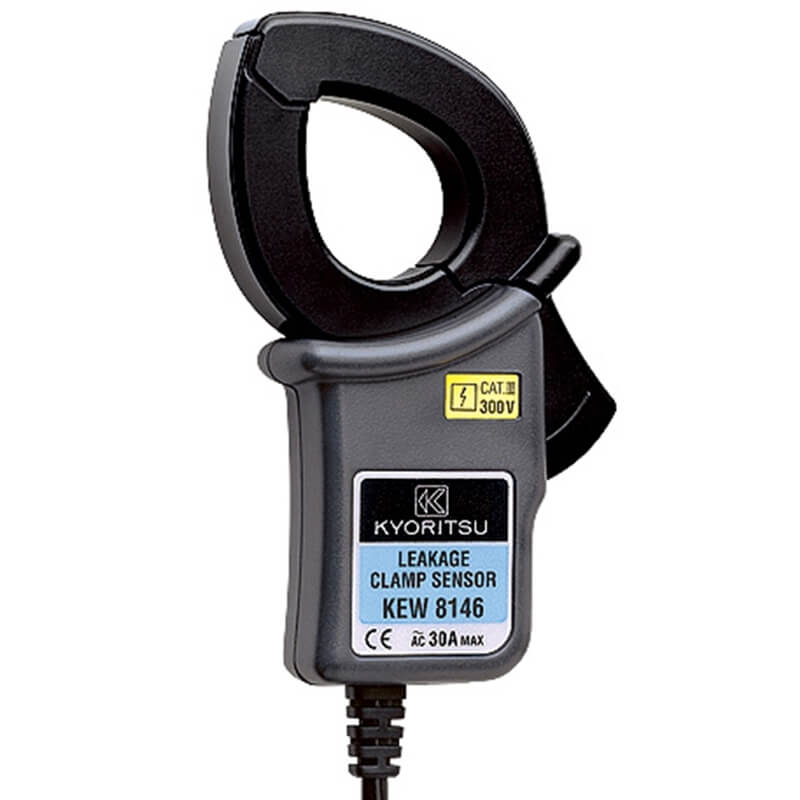

Major Tech 30A Leakage & Load Current Clamp Sensor
R 4,550.00
SKU: K8146
Sold out
Click & Collect
Collect at Potchefstroom — choose pickup at checkout.
Description
Optional Extra for the K5010, K5020 and K6315. Can measure up to 10A for use in K6315.
Key points
- Brand: Major Tech
- Category: Sensors & Automation
- Model / SKU: K8146
Specifications
- Function: Range
- Conductor Size: Ø24mm
- Rated Current: 30A
- Current accuracy: ±(1.0%±0.1mV )
- Frequency: 40-1KHz
- Output Voltage: 1500mV (30A, 50mV/A)
- Cable Length: 2 meters
- Output Impedance: 90Ω or less
- Applicable Models: K5010 ,K5020, K6315
- Weight: 150g
- Dimensions: 100 x 60 x 26mm
- Safety Specs: IEC 61010-1 CATIII 300V
Ideal application
Home, renovation and trade projects where the product specifications match the job.
Buying notes
Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
