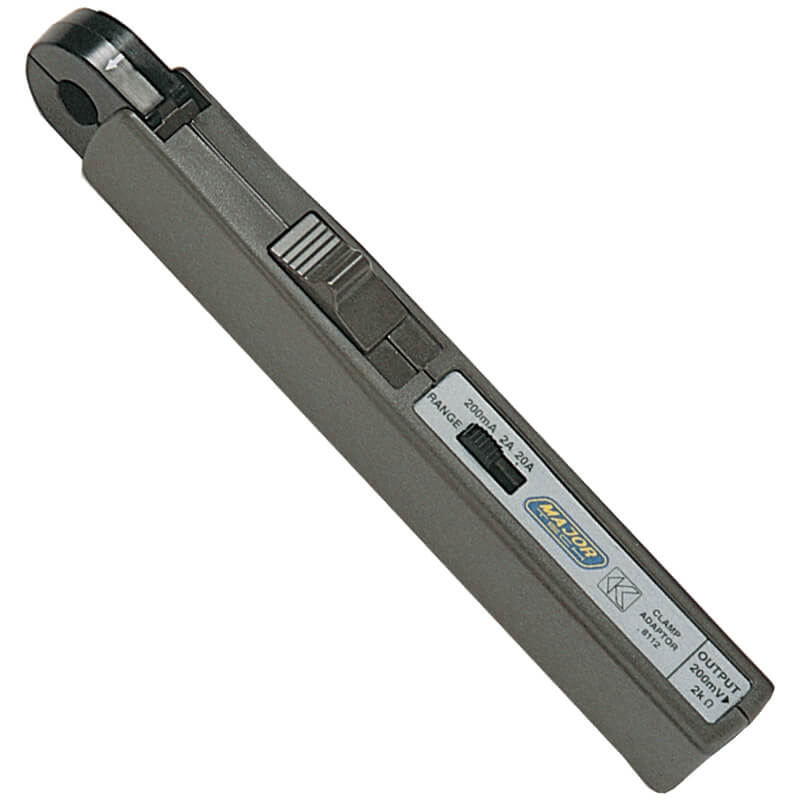

Major Tech 120A AC Clamp Adaptor, CAT III 300V

Description

The K8112 clamp adaptor with a small conductor size of 8mm is designed to be an AC current/voltage conversion probe capable of measuring AC current from 0,1mA to 120A in conjunction with high sensitivity AC voltmeters, especially useful with digital multimeters. Simple to operate, the unit has range switch position at 200mA, 2A and 20A.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K8112

Specifications

• Function: Range
• AC Current: 0.1mA - 120A ±(1.5% + 0.2mA)
• AC Bandwidth: 40Hz to 10kHz
• Jaw size: 8mm
• Enclosure: Moulded case
• Low battery indication: •
• Power source: 2 x LR03
• Weight: 100g
• Dimensions: 147 x 58 x 26mm
• Safety Specs: IEC61010-1 CatII 100V

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
