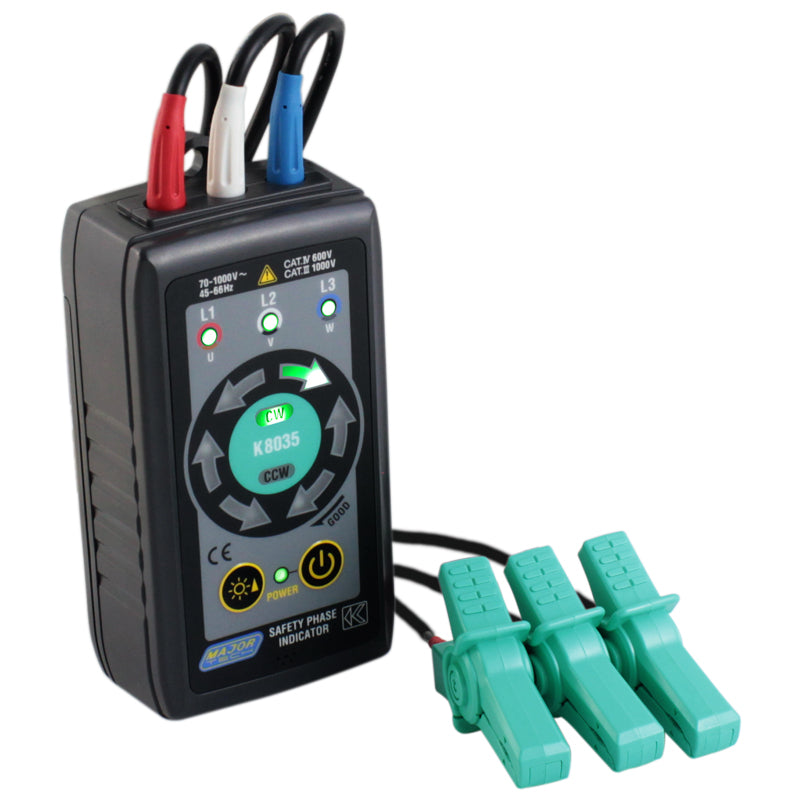

Major Tech Non-Contact Phase Rotation Meter, CAT IV 600V

Description

The K8035’s technology and the first non-contact phase rotation tester permits safe testing of phase rotation without the need to expose live contacts. The unit requires no metal contact ideal for safer and faster testing.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K8035

Specifications

• Function: Range
• AC Voltage: 70 - 1000V
• Clamp Diameter Range: ∅2.5mm - ∅30mm
• Detection Method: Electrostatic Induction
• Measuring Frequency: 45 - 66Hz
• Phase Rotation: Clock or Anti-Clock Wise
• Visual Indication: Bright LED Lights and Audio
• Low Battery Indication: LED Blinks
• Indication Colours: Red, White and Blue
• Enclosure: Moulded Case
• Power Supply (Batteries): LR6 x 4 (AA Batteries)
• Weight: 380g

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
