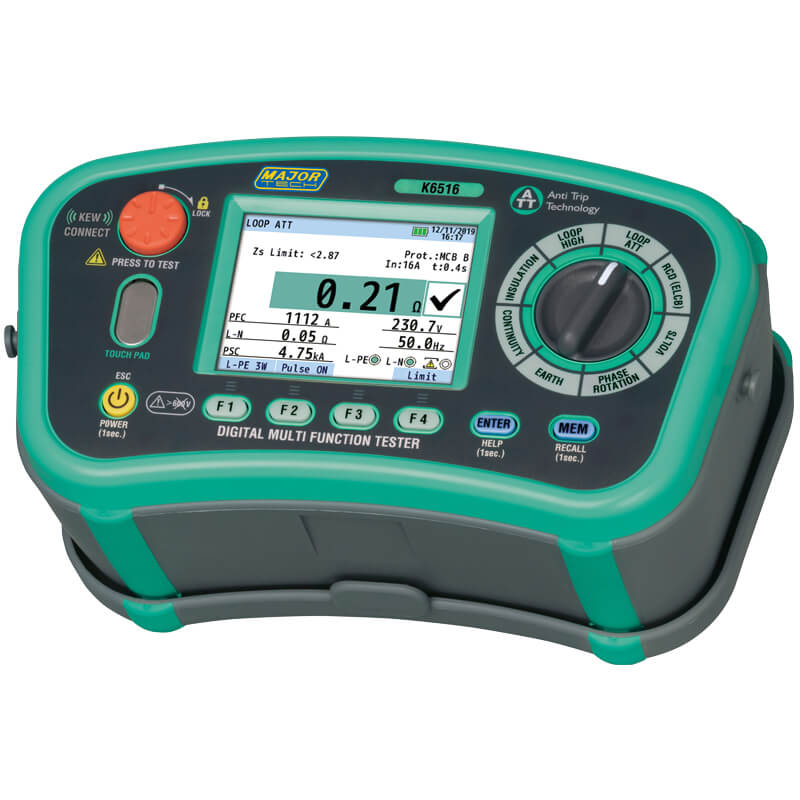

Major Tech Multifunction Installation Tester, CAT IV 300V
SKU: K6516
Sold out
Collect at Potchefstroom — choose pickup at checkout.
Description
The K6516 Multifunction Installation Tester are advanced multifunction testers performing 12 separate test functions which are required for SANS 0142 and IEC 61557-10. The multifunction’s include Insulation with PI and DAR, continuity, earth loop impedance, RCD testing, prospective short circuit, prospective fault current, earth resistance, AC Voltage, frequency, phase rotation, SPD (varistor) and PAT (portable appliance testing).
Key points
- Brand: Major Tech
- Category: Test Instruments
- Model / SKU: K6516
Specifications
- Function: Range
- AC voltage: 0 - 600V
- Resistance: 0 - 400Ω
- Insulation resistance 125V: 125V
- Insulation resistance 250V: 250V
- Insulation resistance 500V: 500V
- Insulation resistance 1000V: 1000V
- Short circuit current: 1,5
- Overrange indication: Yes
- Polarization index: Yes
- Dielectric absorption ratio: Yes
- Auto discharge: Yes
Ideal application
Electrical testing and troubleshooting by a qualified person.
Buying notes
Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
