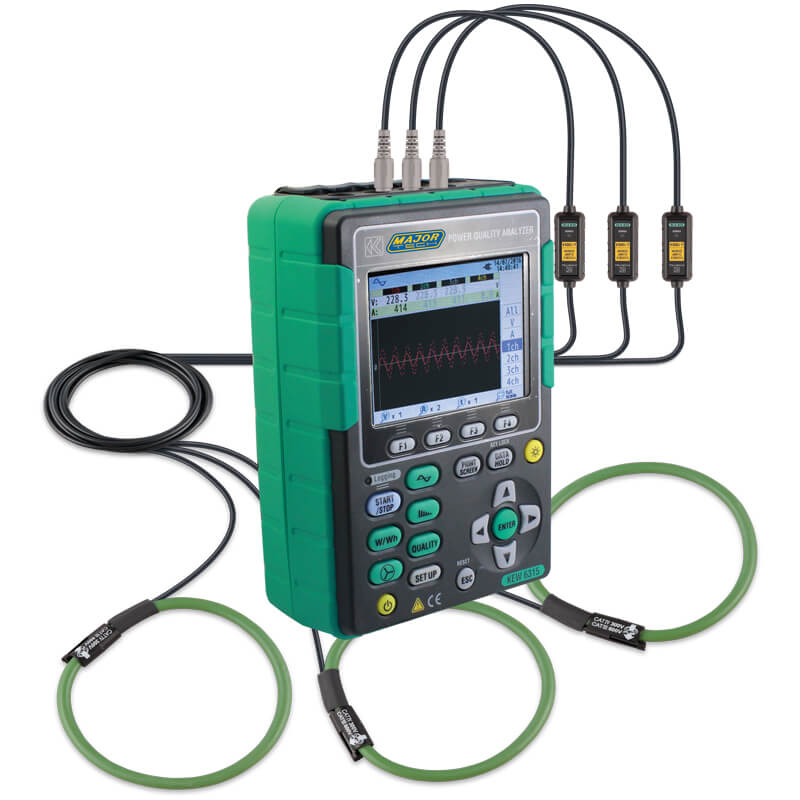

Major Tech Power Quality Analyser Set, CAT IV 300V

Easy-to-use settings that simultaneous record of power & power quality measurements in one survey. Major Tech’s Power Quality Analyser are the perfect tools for measuring energy and power control.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K6315-03

Specifications

• Function: Range
• Voltage (RMS): 600.0/1000V
• Current (RMS): 100mA-3000A depending on CT selection
• Frequency Range: 40-70Hz
• Wiring connections: 1P2W, 1P3W, 3P3W, 3P4W
• Measurements and Parameters: Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent ene
• Other functions: Digital Output function, external communication function, scaling function
• Sampling Speed: 2.4μs
• Power source AC: AC100-240V/ 50/60Hz/ 7VA max
• Power source DC: 6 x LR6 or Ni-Mh, Batt Life ±3hrs
• Internal Memory: Flash Memory (4MB)
• PC Card Interface: SD Card (2GB)

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
