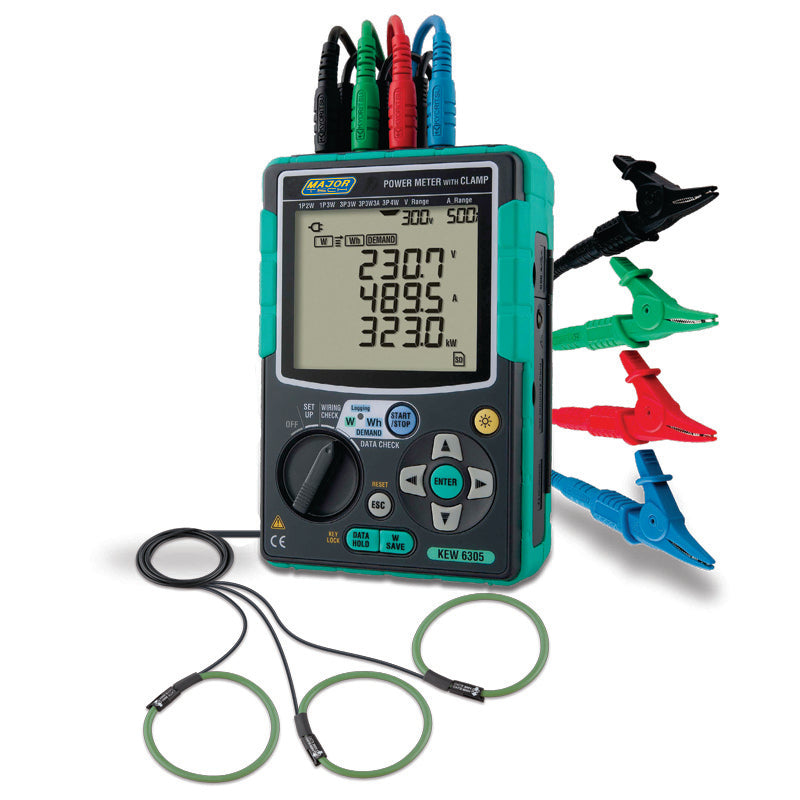

Major Tech Compact Power Meter c/w 3x K8130 Flexi Clamps

Description

K6305-03 analyse power quality and calculate energy loss as easy as 1 – 2 – 3! A simple and inexpensive way for cost savings through energy monitoring!

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K6305-03

Specifications

• Function: Range
• Voltage (RMS): 150.0/300.0/600.0V
• Current (RMS): 10.00/50.00/100.0/200.0/500.0/Auto with K8125
• Frequency: 40-70Hz
• Wiring connections: 1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W
• Measurements and Parameters: Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent ene
• Allowable Input: 1-110% of rating range (rms).
• Display Range: 5-130% of each range
• Crest Factor: 2.5 or less
• Sampling Speed: 2.4µs
• Power source AC: AC100-240V/ 50/60Hz
• Power source DC: 6 x LR6 or Ni-Mh, Batt Life ±15hrs LR6

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
