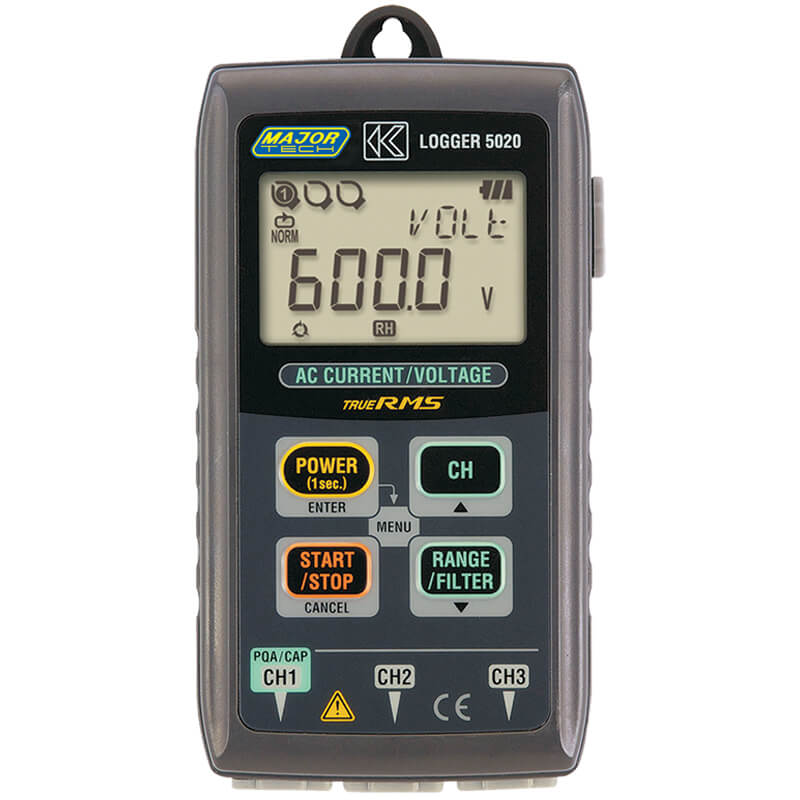

Major Tech Leak/Load Current Data Logger, CAT III 300V

The K5020 is a 3 channel data logger for multiple parameters recording of voltage and or current. The clamp sensors and or voltage sensors can be connected to any of the 3 channels as the logger will automatically identify the sensors connected.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K5020

Specifications

• Function: Range
• Voltage (RMS): 600.0V
• Current (RMS): 100mA-3000A depending on CT selection
• Active Power: ±(0.3% ±0.2%)f.s. +accuracy of clamp sensor +1%f.s. when the lowest current ranges is selected.
• Frequency Range: 50-60Hz
• Wiring connections: 3 Channels
• Measurements and Parameters: Voltage, Current, Normal, Trigger, Capture, Power Quality Analysis.
• Sampling Speed: 100mS
• Power source AC: External DC9V (special AC Adapter)
• Power source DC: 4 x LR6
• Internal Memory: 60000 data points 1Ch, 20000 per channel
• PC Communication: USB, Kew Log Soft 2

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
