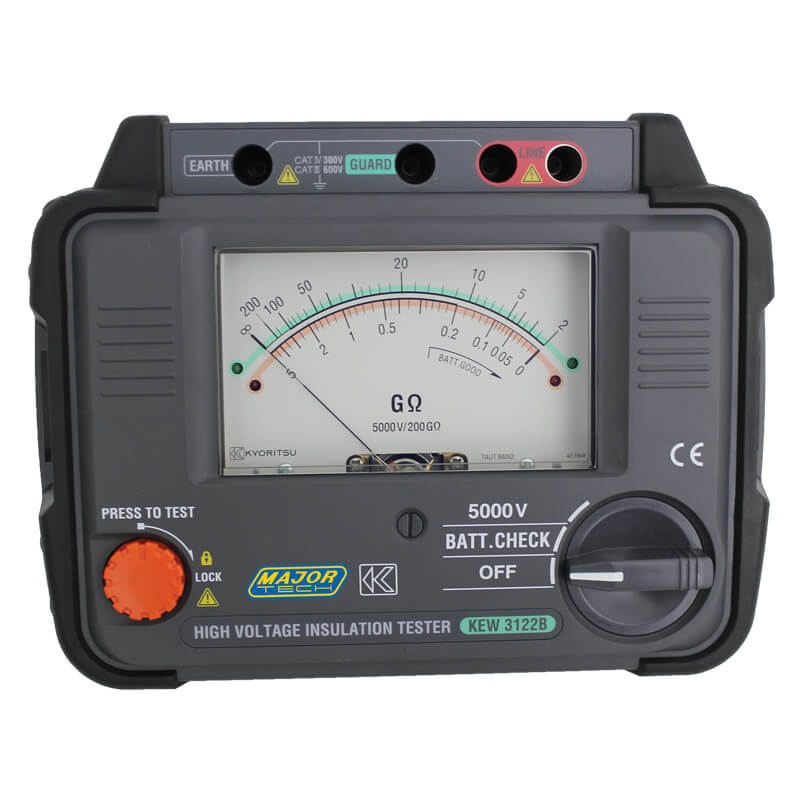

Major Tech 5KV Analogue Insulation Tester, CAT IV 300V

Description

The K3122 is a High Voltage Insulation tester that is a tough, rugged meter designed and manufactured to read accurate measurements in harsh environments. This model is gasket sealed to prevent ingress of liquids and dust and is supplied with a water resistant, heavy duty case.

Key points

• Brand: Major Tech
• Category: Test Instruments
• Model / SKU: K3122

Specifications

• Function: Range
• Insulation resistance 2500V: 5000V
• Short circuit current: 0.08mA
• Battery Test Function: Yes
• Display: High/Low scales analogue display
• Auto discharge: Yes
• Enclosure: Robust moulded case
• Power source: 8 x LR14
• Weight: 1.6kg
• Dimensions: 177 x 226 x 100mm
• Safety Specs: IEC61010-1 CAT III 600V and CAT IV 300V

Ideal application

Electrical testing and troubleshooting by a qualified person.

Buying notes

Confirm voltage, mounting and any required accessories before purchase. Have a qualified electrician install fixed electrical equipment. Available from Superior Electrical in Potchefstroom - ask us if you need help choosing.
